Nedo mEsstronic 2 with Bluetooth®


Nedo mEsstronic 2 is the new generation of digital telescopic rules for measuring clear dimensions in interior finishing.
The new mEsstronic 2 features an integrated Bluetooth interface, a large illuminated display and a very robust design.
The integrated Bluetooth interface can transmit measurement values directly to a smartphone, tablet or laptop. The large illuminated display of the mEsstronic 2 is easy to read, even in unfavourable light conditions.
The hold function lets you capture the measured value on the display. The value flashes to show activation of the hold function.

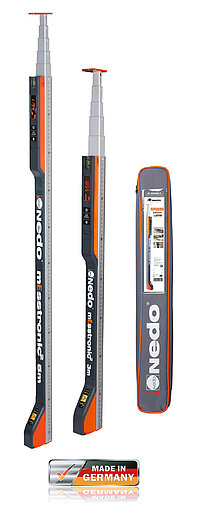

A two-way bubble level integrated in the display housing facilitates measurements in both the horizontal and vertical position. The automatic shut-off prevents unnecessary discharging of the two AA batteries. With its measurement ranges of up to 3 m and up to 5 m, the new mEsstronic 2 with Bluetooth is suited for all typical measurement tasks in interior fi nishing.



  • Bluetooth interface for transmitting measurement values (Bluetooth 5.2 LE)
  • Simple coupling with a mobile device
  • Compatible with iOS, Android and Windows
  • Illuminated display
  • Hold function for capturing values
  • Power supply 2 x 1.5 V AA batteries
  • Automatic shut-off after 3 minutes of non-use
  • Operating time approx. 100 h
  • Integrated bubble levels for horizontal and vertical use
  • Padded carrying bag supplied as standard



Digitalization in measurement: mEsstronic 2 with Bluetooth®

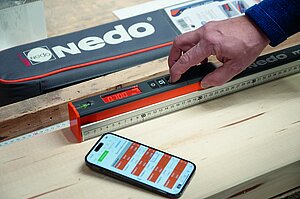

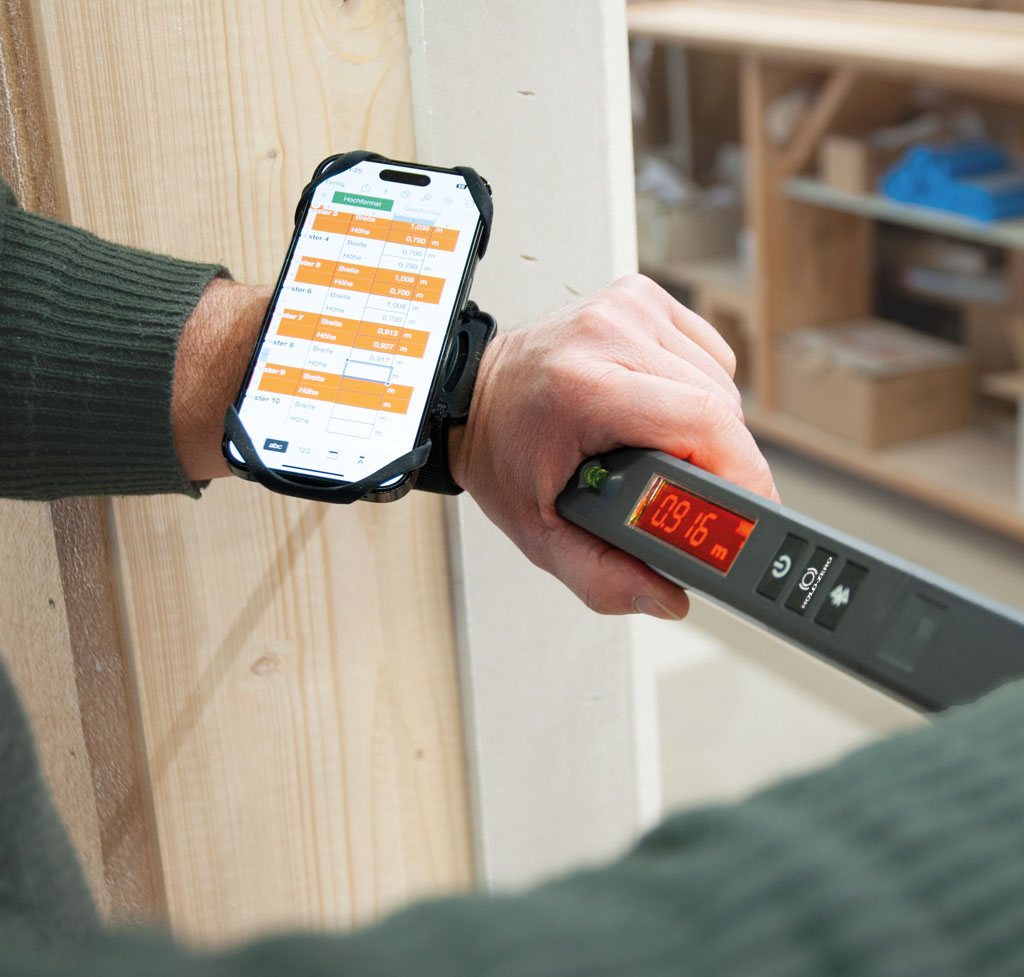

The new mEsstronic 2 with Bluetooth enables measurements to be taken quickly and easily and then transmitted to a mobile device like a smartphone, tablet or laptop. Since no special software is required to do so, the measured values can be used directly in any document or app on a mobile device. mEsstronic 2 is compatible with iOS, Android and Windows.

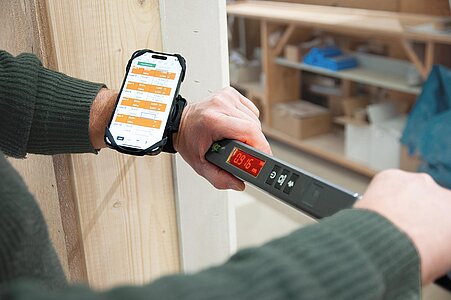

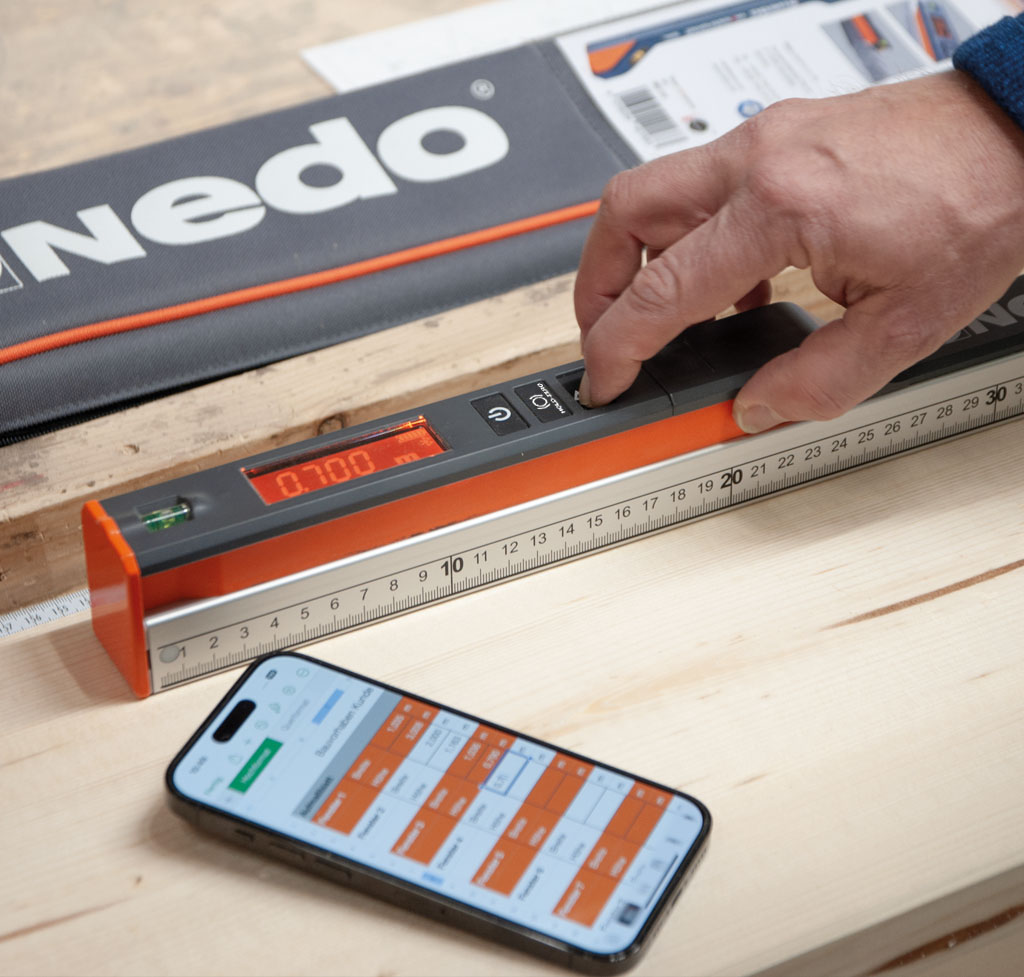

Just take the measurement, mark the required box in your app and then press the Bluetooth key of the mEsstronic 2: the measured value is now available on the mobile device for further processing.
No more tiresome manual entry of the measured values into a measurement sheet. That saves time and prevents errors.

The new mEsstronic 2 with Bluetooth for digitalization in measurement.

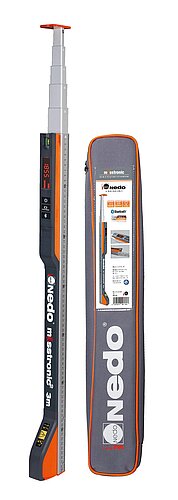

Nedo mEsstronic 2

Ref.-No. Measuring range Accuracy Length retracted Graduations Resolution Weight Incl. case Incl. bubble
583131 0.70 m to 3.00 m ± 1 mm 0.70 m mm/inch 1 mm 1.4 kg yes yes

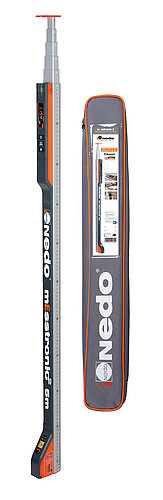

585131 1.05 m to 5.00 m ± 1 mm 1.05 m mm/inch 1 mm 2.1 kg yes yes

Digitalization in measurement: mEsstronic 2 with Bluetooth®
