X-Liner 3D green

Self-levelling multi-line laser with green 3 x 360° laser lines

Green multi-line laser with three 360° laser lines.
The highly visible green 360° laser lines and robust self-levelling mechanism allow quick and easy levelling, aligning, plumbing and marking off right angles in interior work.
Power is supplied by a high-performance Li-ion battery.

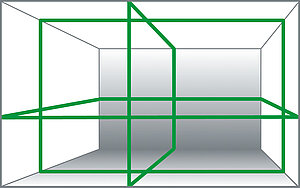

  • Laser cross on 4 walls, floor and ceiling
  • Green laser lines for maximum visibility
  • Puls mode for operation with optional laser receiver ACCEPTOR X green
  • Robust design for tough use on construction site
  • Sturdy housing, splashwater protected, IP 54 rated
  • Reliable self-levelling with magnetic damping
  •  1/4’’ and 5/8“ connection thread
  •  Li-Ion battery pack, charger and extra battery box for 4 x AA 1.5 V batteries

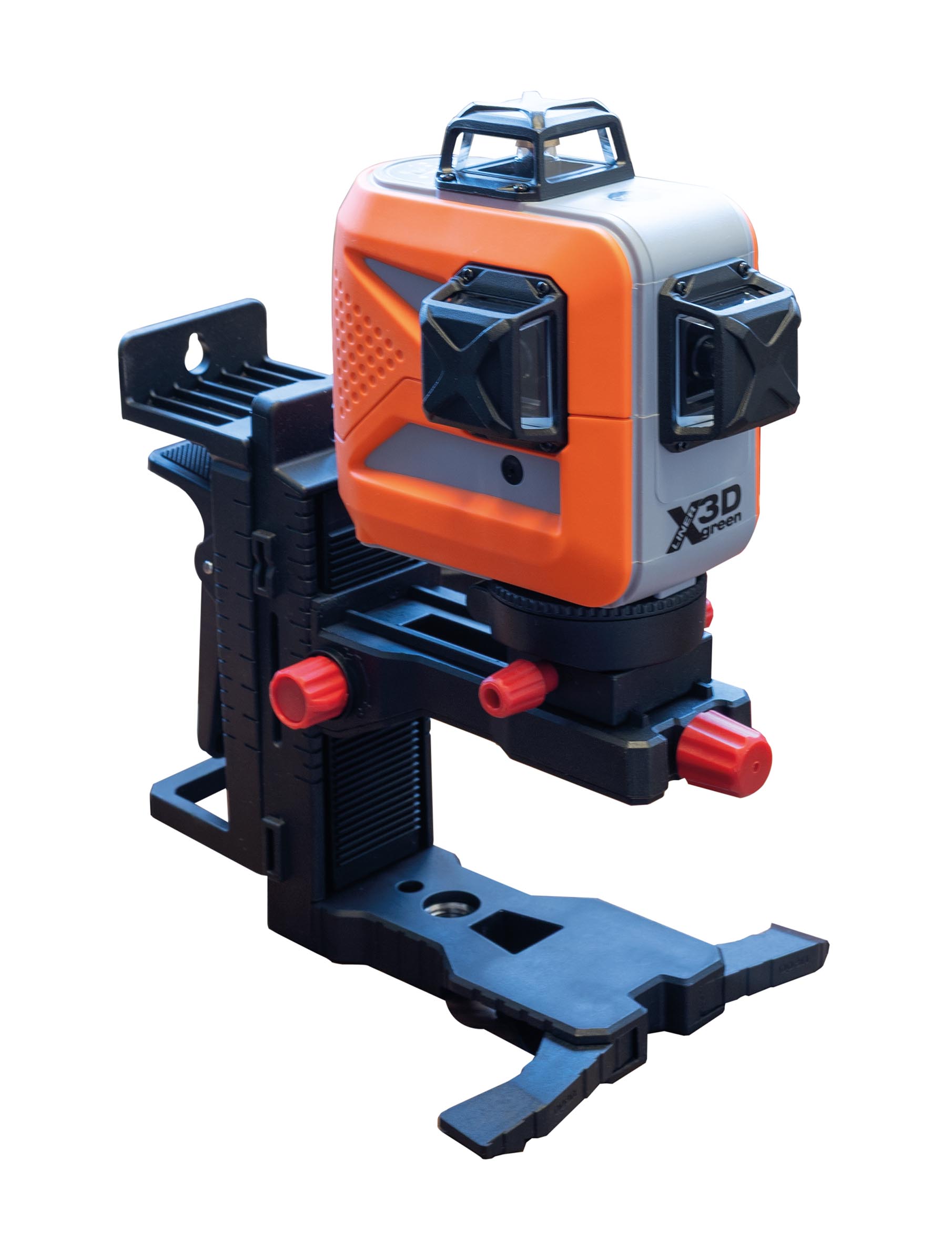

  •  Height adjustable, multifunctional wall mount

Perfect for quick and precise levelling, aligning and marking off right angles, especially for applications such as:

  • Metre marking in interior work
  • Dry lining
  • Ceiling construction
  • Tiling
  • Installation of doors and windows
  • Steel construction

X-Liner 3D green

Ref.-No. 460876
Accuracy ± 0.3 mm/m
Self-levelling range ± 3°
Working range Ø approx. 50 m without receiver
approx. 120 m with receiver
Laser Laser class 2, 515 nm
Protection class IP 54
Power supply Li-Ion rechargeable batteries 7.4 V 2600 mAh or
4 x 1.5 V type Mignon / AA
Operation duration up to 25 h
Connection thread 1/4’’ and 5/8''

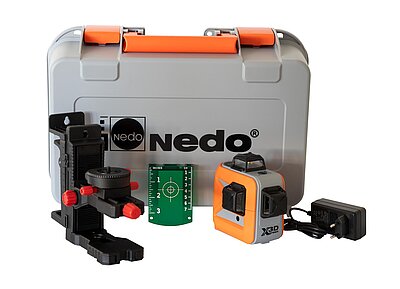

Scope of delivery

X-Liner 3D green

Ref.-No. 460876
  • Multi-line laser X-Liner 3D green

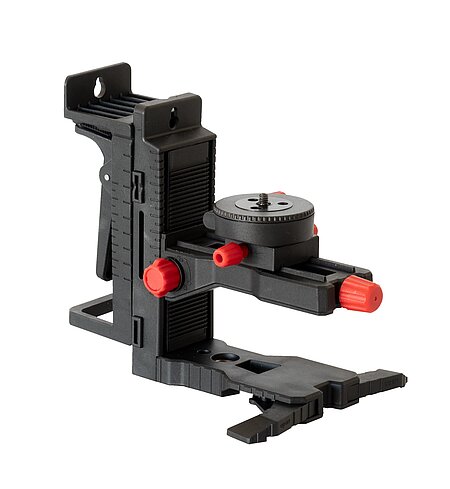

  • Multifunctional wall mount
  • Target board
  • Laser glasses
  • Rechargeable batteries
  • Charger
  • Extra battery box
  • Transport case

Optional Accessory

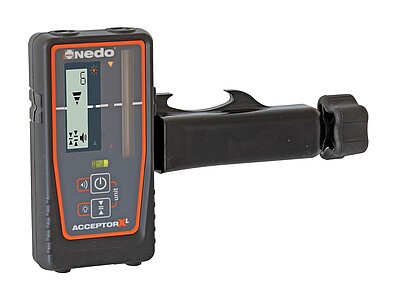

Laser receiver ACCEPTOR X green

Ref.-No. 430323
  • Nedo Laser receiver ACCEPTOR X green
