SIRIUS 1 H

The fully automatic horizontal rotating laser

The fully automatic horizontal rotating laser with laser receiver ACCEPTOR 2 digital with mm display and heavy-duty rod clamp and Easy Control – the one-pushbutton operation for extremely easy handling.
The rotating laser offers fully automatic self-levelling. The automatic level control stops the laser if it receives a heavy jolt. In this way height errors are avoided. Simply switch it on and off you go!

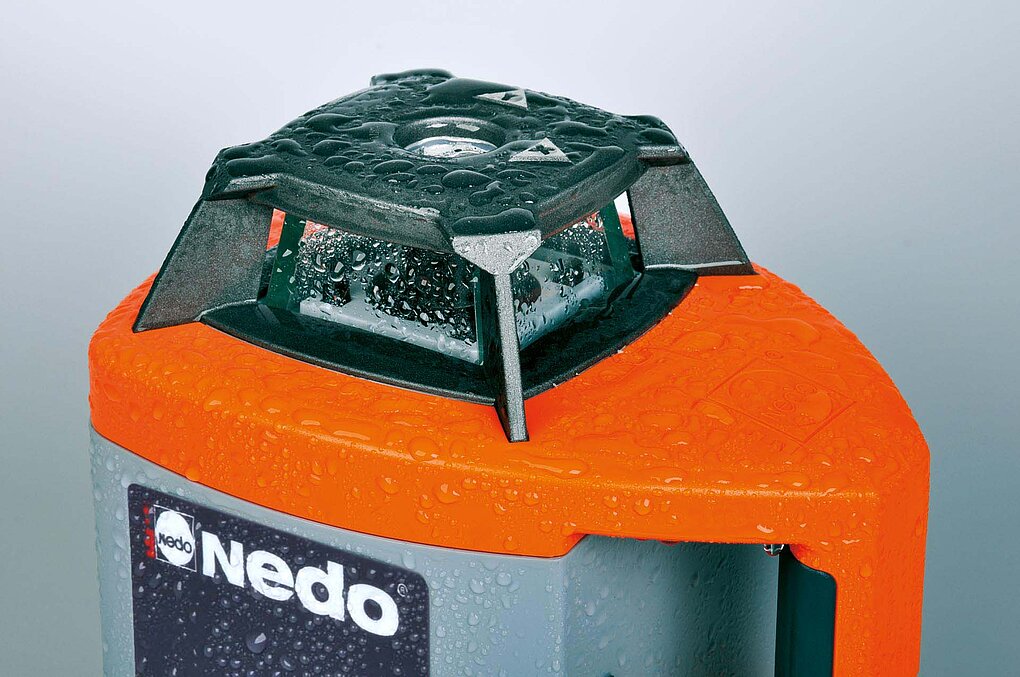

Waterproof and dustproof, in line with IP 65

Thanks to the further-developed seal, the new SIRIUS 1 is splashproof and dustproof in accordance with IP 65 and therefore meets sealing requirements expected of only much more expensive rotating lasers.

Improved drop protection

The new rotor protection in aluminium and shatterproof glass means the new SIRIUS 1 is even more robust, so it can cope easily with knocks and falls.

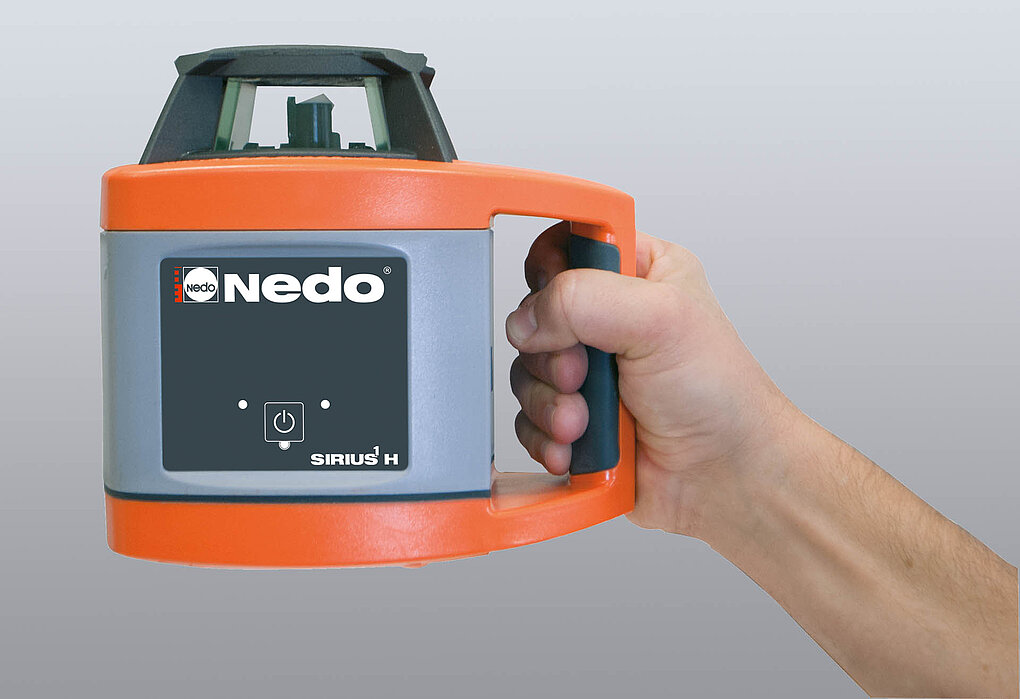

Improved ergonomics

Thanks to the newly designed rubber handle, the new SIRIUS 1 is easy to operate and handle. The rubber-covered feet ensure improved stability even on smooth surfaces.

Laser receiver ACCEPTOR 2 digital with mm display and Heavy-Duty rod clamp

This practically indestructible all-metal rod clamp fixes the laser receiver securely and dependably, even under the most rugged operating conditions, to telescopic or flexible staffs. Ideal in civil engineering.

Laser receiver ACCEPTOR MAXX with mm display, extra large detector field and Heavy-Duty rod clamp

The ingeniously designed display can be seen from both the front and the side. The LEDs are extremely bright, allowing them to be read from a great distance.

Features

  • Fully automatic horizontal laser for exterior applications
  • Self-levelling range ± 5° motor-powered, with automatic level control
  • High-power laser diode (3R) for very good laser beam visibility
  • Alternatively available with laser class 2
  • Automatic level control stops the laser if it receives a heavy jolt. In this way, height errors
    are avoided.
  • Rugged housing protected against low pressure jet water in accordance with IP 65
  • Rotor protection made of cast aluminium and break-proof glass
  • High-power NiMH rechargeable batteries for long operation

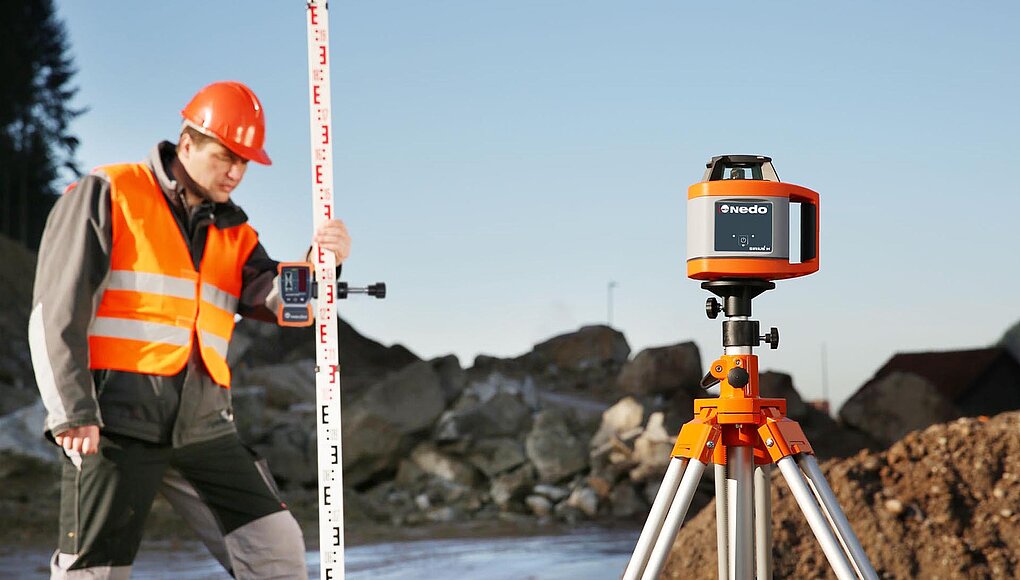

Ideal for use on every construction site. Perfect for levelling in applications such as:

  • Casting concrete floors
  • Fine grading
  • Metre marking in interior work
  • Bricklaying
  • Excavation work
  • Landscaping

SIRIUS 1 H

Technical data:
Accuracy ± 1 mm/10 m
Self-levelling range ± 5° motor-powered with automatic level control
Working range Ø approx. 400 m with receiver
Laser < 5 mW, laser class 3R, 635 nm or
< 1 mW laserclass 2, 635 nm
Rotating speed 600 rpm
Pretection class IP 65
Power supply NiMH rechargeable batteries 4.8 V, 3800 mAh
Operation duration approx. 30 h
Weight 2.3 kg
Dimensions (width/depth/height) 150 mm x 200 mm x 190 mm
Operation temperature -20°C to + 50°C
Connection thread 5/8''

Laser receiver ACCEPTOR 2 digital

Technical data:
Accuracy switchable, ± 1 mm, ± 4 mm and ± 6 mm
Working range Ø 550 m (depends on laser)
Length of detectorfield 50 mm
Reception angle ± 65°
Protection class IP 67
Operation temperature -20°C to + 50°C
Power supply 2 x 1.5 V (AA) or rechargeable batteries NiMH
Operation duration up to 120 h

Nedo ACCEPTOR MAXX

Technical data:
Accuracy switchable, ± 1 mm, ± 2 mm, ± 4 mm and ± 8 mm
Working range Ø 900 m (depends on laser)
Length of detector field 120 mm
Reception angle ± 45°
Protection class IP 67
Operating temperature -20°C to +60°C
Power supply 2 x 1.5 V type Mignon (AA)
Operation duration up to 60 h

Order information - SIRIUS 1 H

Ref.-No.
Laser class 3R
Ref.-No.
Laser class 2

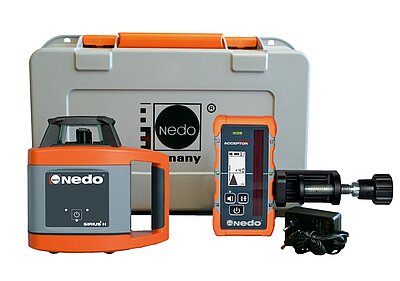

471933 471933-632 Rotating laser SIRIUS 1 H
Incl. laser receiver ACCEPTOR 2 digital with mm display and Heavy-Duty rod clamp, rechargeable batteries, charger and case
471934 471934-632 Rotating laser SIRIUS 1 H
Incl. laser receiver ACCEPTOR MAXX with mm display and Heavy-Duty rod clamp, rechargeable batteries, charger and case

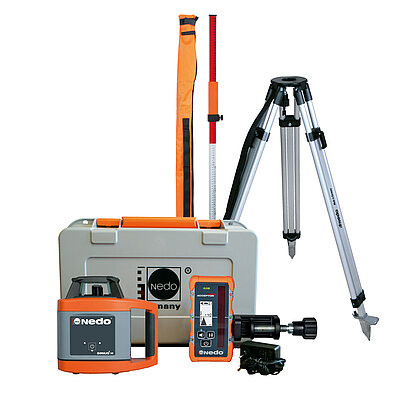

471931 471931-632 Rotating laser SIRIUS 1 H Set 1
Incl. laser receiver ACCEPTOR 2 digital with mm display and Heavy-Duty rod clamp, rechargeable batteries,
charger, case, aluminium tripod (Ref.-No. 200 225), Flexi Rod with universal adapter and carrying bag

Calibration certificate for Nedo rotating lasers

Ref.-No. 399556 calibration certificate for Nedo rotating lasers

Scope of delivery



Scope of delivery SIRIUS 1 H

Ref.-No. 471933
  • Rotating laser SIRIUS 1 H
  • Laser receiver ACCEPTOR 2 digital with mm display and
    Heavy-Duty rod clamp
  • Rechargeable batteries and charger
  • Transport case

Scope of delivery SIRIUS 1 H Set

Ref.-No. 471931
  • Rotating laser SIRIUS 1 H
  • Laser receiver ACCEPTOR 2 digital with mm display and
    Heavy-Duty clamp rod
  • Rechargeable batteries and charger
  • Transport case
  • Aluminium tripod (Ref.-No. 200 225)
    working range  0.91 m to 1.69 m
  • Flexi rod with universal adapter and carrying bag


Scope of delivery SIRIUS 1 HV

Ref.-No. 471934
  • Rotating laser SIRIUS 1 H
  • Laser receiver ACCEPTOR MAXX
  • Rod clamp
  • Rechargeable batteries and charger
  • Transport case
